- Hign-concerned Chemical: None
- Model Number: SC400W-EU-V7-WHI
- is_customized: Yes
- Brand Name: LoraTap
- Voltage: 110-240V
- Wattage: 600W
- Origin: Mainland China
- Certification: CE,RoHS,weee
- App Name: Tuya, Smart Life
- App Type: Free App, Support Android and IOS
- Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi)
- Need a Hub: No
- Support: Hands-free Voice Control
- Voice Control: Google Assistant, Amazon Alexa
- application: DIY
- Color: White/Black
- works with: Classic 4 Wires AC motor
- Compatible with: Tubular Motor with 4 wires

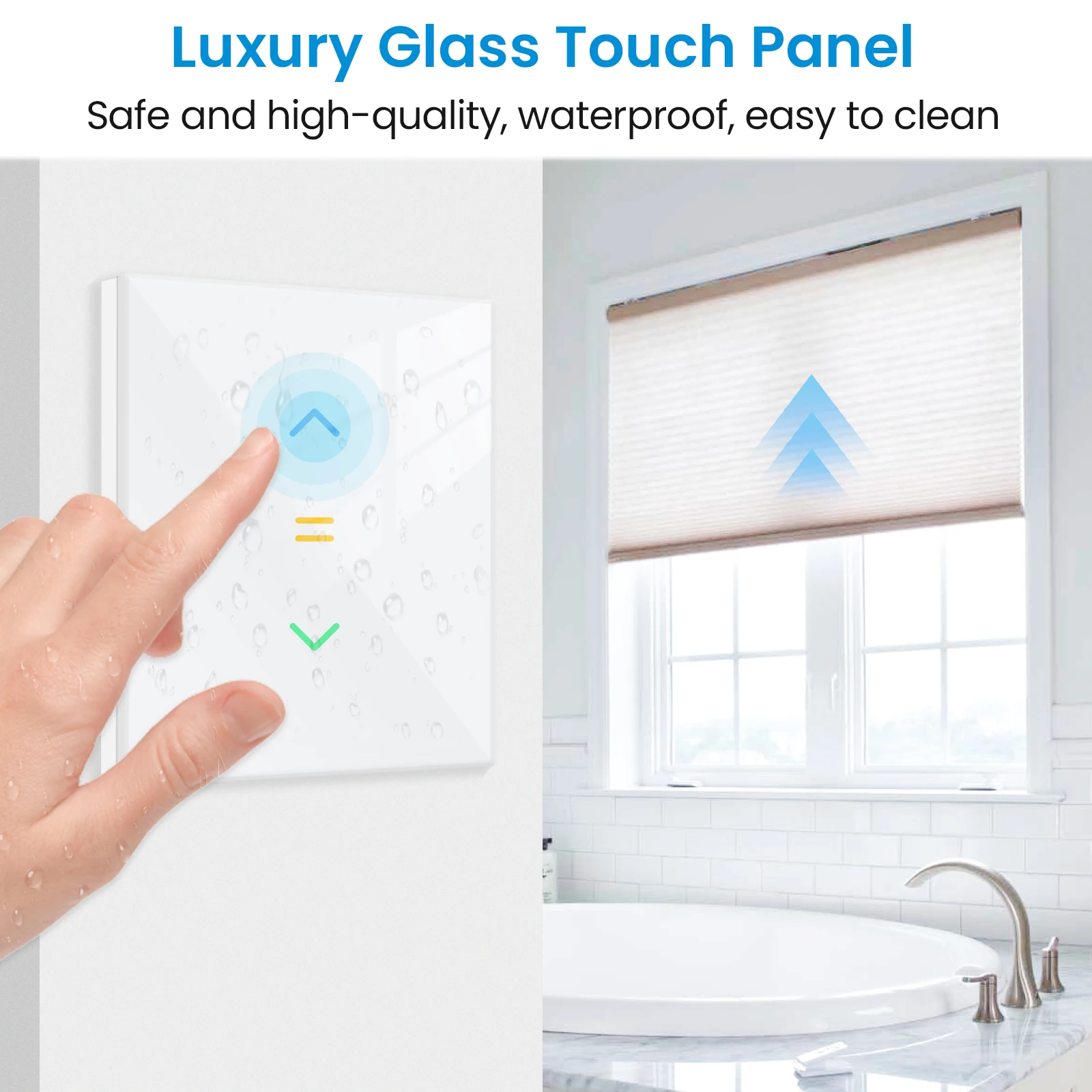

- Panel Type: Glass Touch Panel
- 3 Buttons: Open, Stop, Close
- Switch Dimensions: 86mm*86mm*35mm
- Plastic Material: Fireproof ABS
- Factory Quality: ISO9001:2015 factory
- Certification: CE, RED, EMC, RoHS
Note Before Order!
– Input Voltage: 100~250VAC, 50/60Hzï¼›Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can’t work with DC motor!)
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can’t use our device.
LoraTap Roller Shutter Curtain Switch Features of the 7th Generation (86mmx86m)
• Voice Control:
Voice control the curtain switch ON/OFF by Alexa & Google Assistant at home，only Alexa can set percentage control
• Curtain Percentage Control:
Accurately control roller shutter at specify percentage position via App or Alexa
• App Remote Control:
– Support Smart Life APP /Tuya APP.
– Mobile app remote control to open or close curtain.
• LED Backlight:
Set up lights according to the time of day to guide you in the dark night.
• Group Control:
Groups control your devices and smart your family.
• Timer programming:
You can set a timer to open or close the curtains at a specified time.
• Personalize Scene Settings:
With Smart Life scene settings, you can flexibly set your curtain status according to sunrise, sunset or weather conditions.

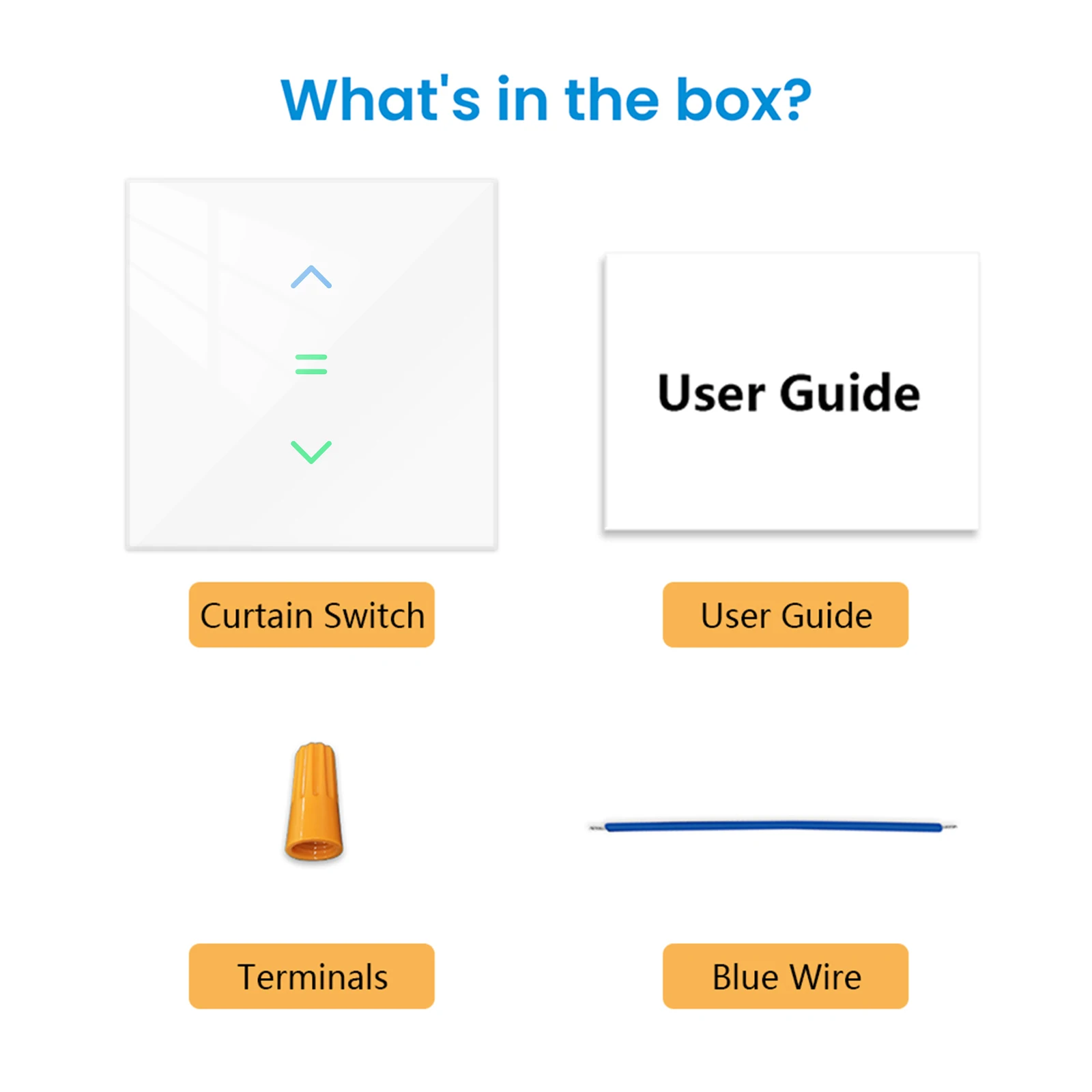

What’s in the Box?
1 * WiFi Curatin Switch
1 * User Guide
1 * Terminal
1 * Blue Cable for Wiring
Specification
Input voltage: 100-250VAC, 50/60Hz

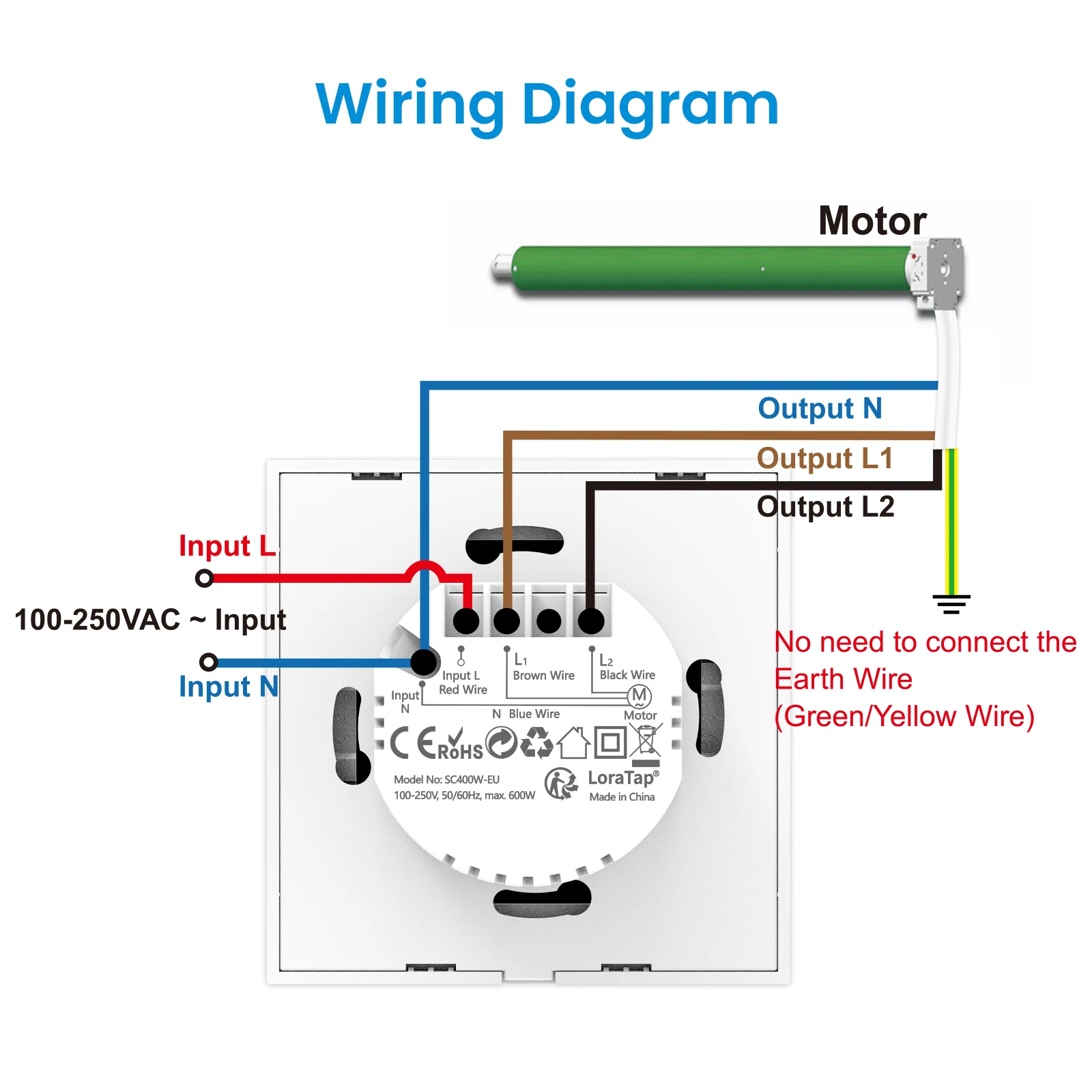

Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 600W
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W

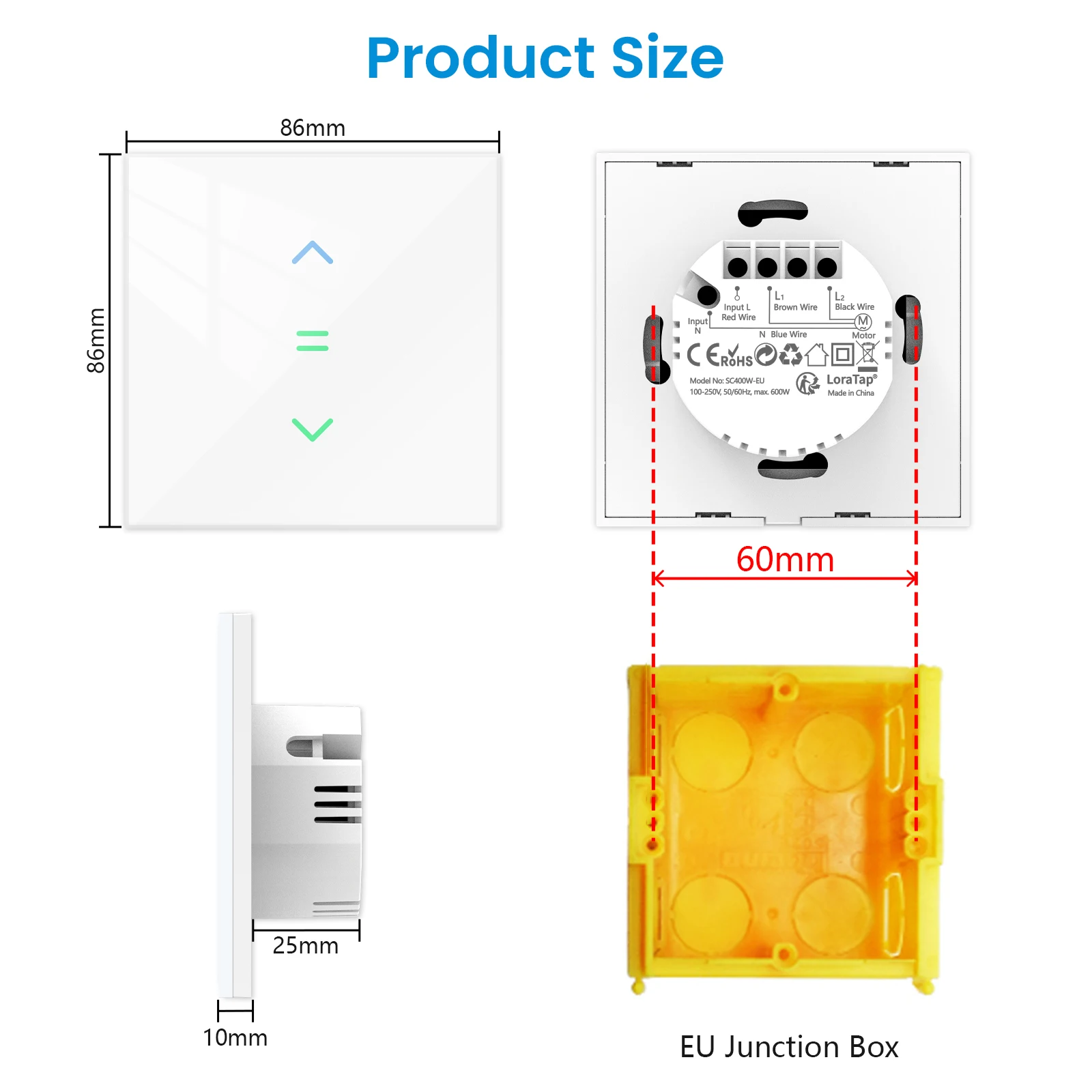

Dimensions: 86mm*86mm*35mm
Colour: White/Black
Compatible with: Tubular Motor with 4 wires
