- Hign-concerned Chemical: None
- Model Number: T12-II
- Brand Name: gzpzdp
- Origin: Mainland China
- Smart home platform: Tuya
- Certification: CE
- Product Name: Tuya Door Access Controller
- User Capacity: 2,000
- Phone APP: Tuya
- Card Type: ID125khz or IC13.56mhz
Smart Function:
1, WiFi (Bluetooth) to Tuya App
2, Remote Release Door Lock from App (device and phone has internet)
3, Remote Add or Delete User from App
4, Door unlock Records Query from App
5, Visitors or Users Temporary Code Setting (Once or Cyclicity type)
Specification
Specifications may be changed without notice If factory improve it
IP68 Waterproof
User Capacity:2000
Card type:RFID 125Khz (T12EM-II), IC 13.56mhz (T12MF-II)
Wiegand output:Wiegand 26/34 bit
Material:Plastic structure design
Keypad:Touch Keypad, Backlit
Environment Humidity:10%～90%
Lock output:≤3A
Working voltage:DC12V
Dimension:114 *75*16mm

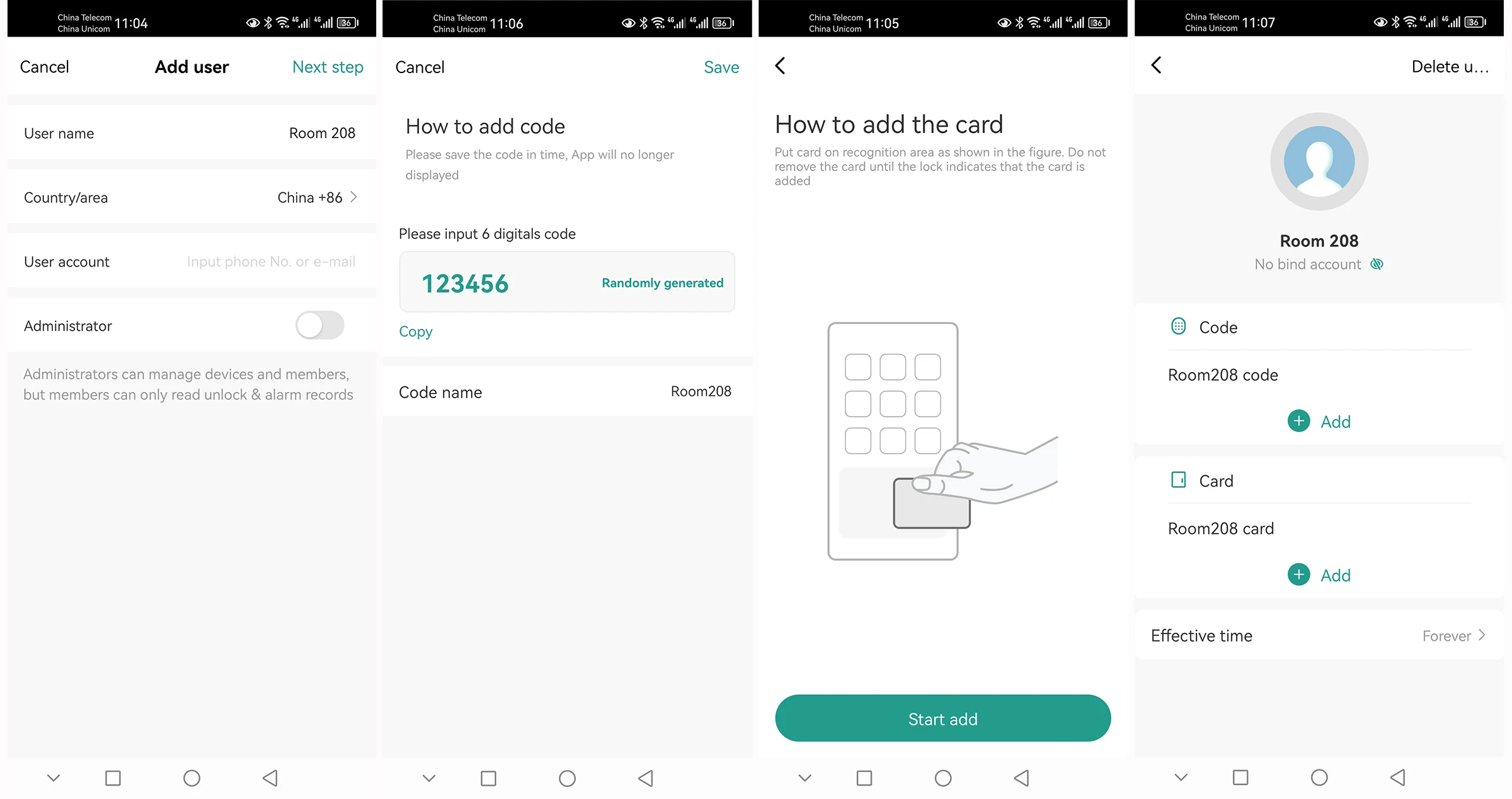

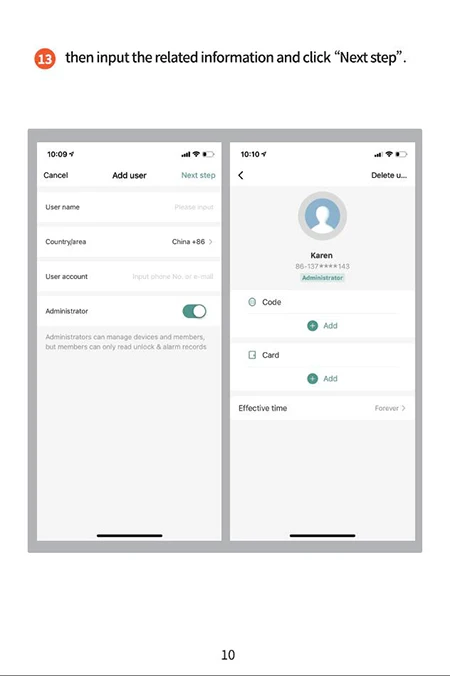

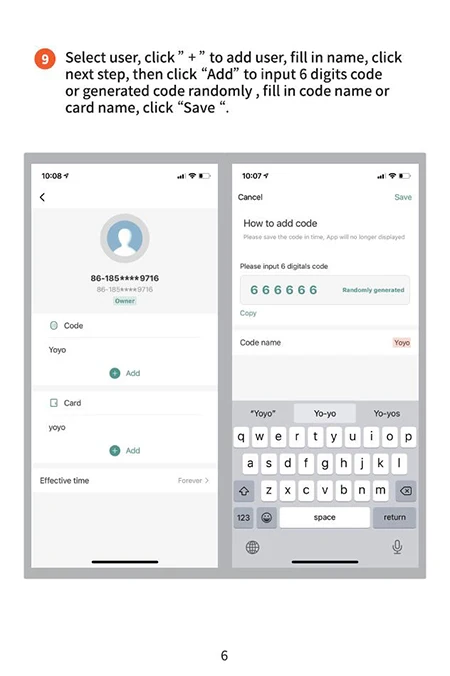

Add or Delete Users from Remote Area
1, How to Add user code from remote:
Just need input 6 digits code from app.
2, How to Add user card from remote:
Choose Start add from app, users put card on recognition area of device.Do not remove the card until the device indicaters that the card is added.

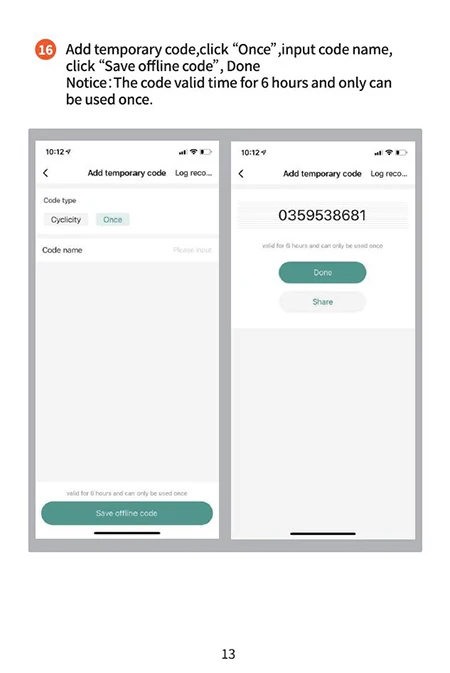

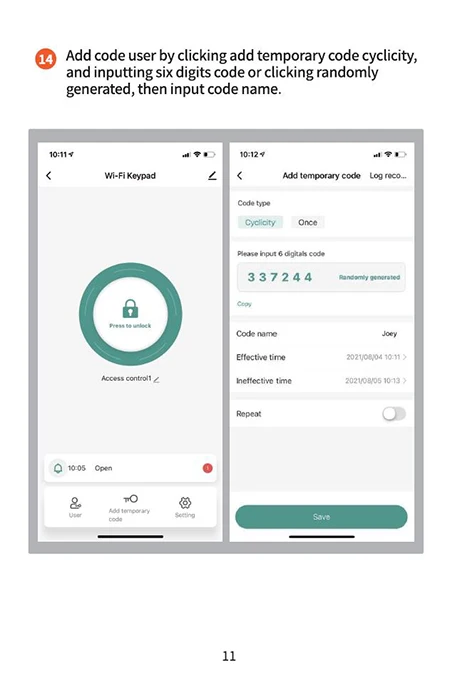

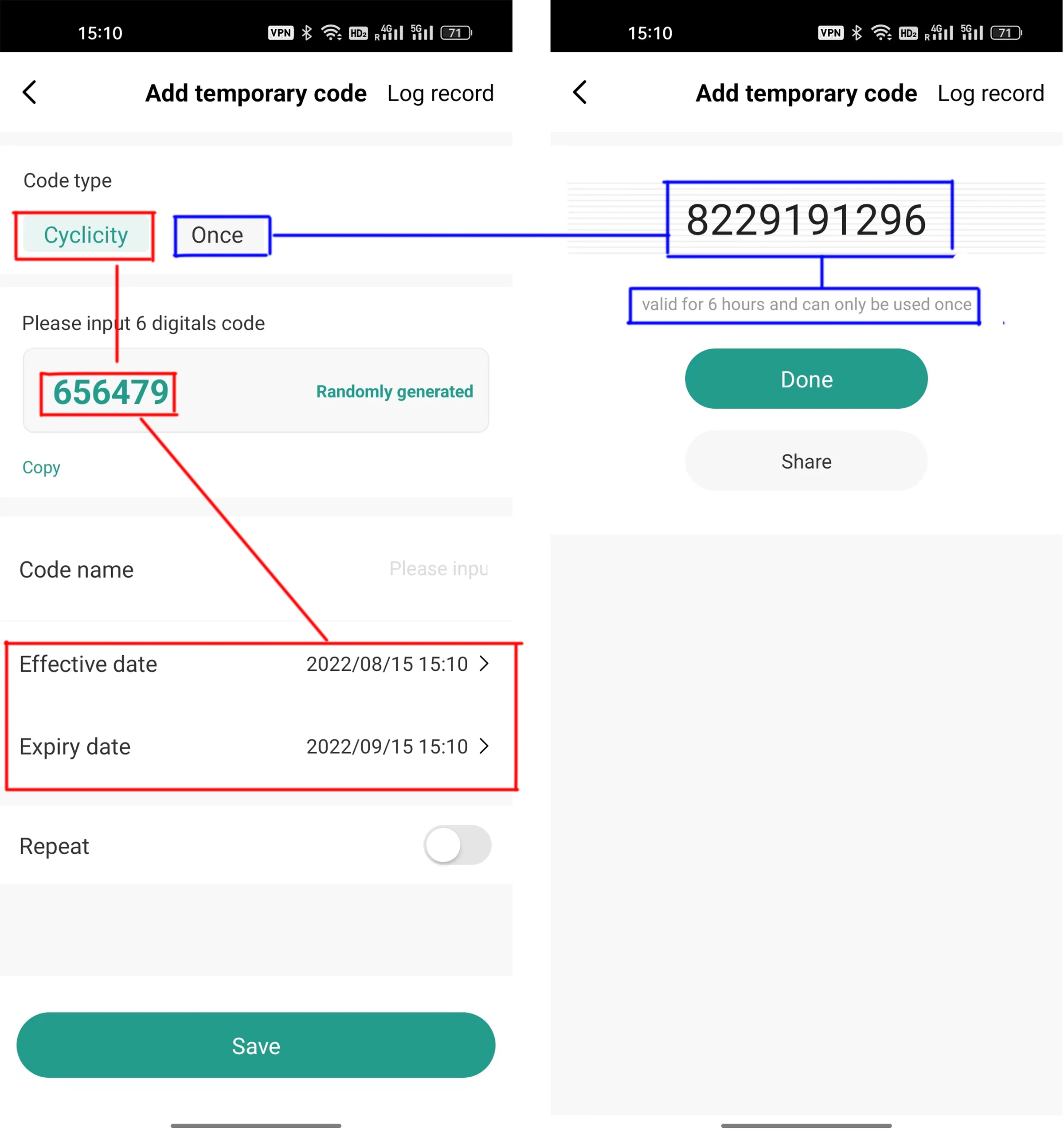

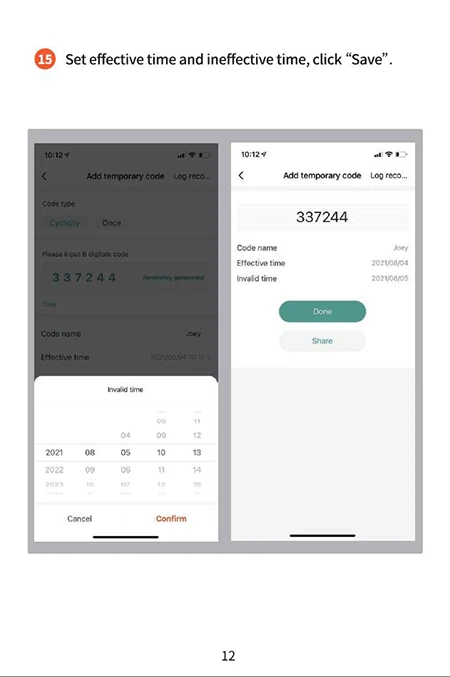

Add Temporary Code from Remote Area
1, Cyclicity Code (can set effective time)
2, Once Code (Valid for 6 hour and only can be used once)

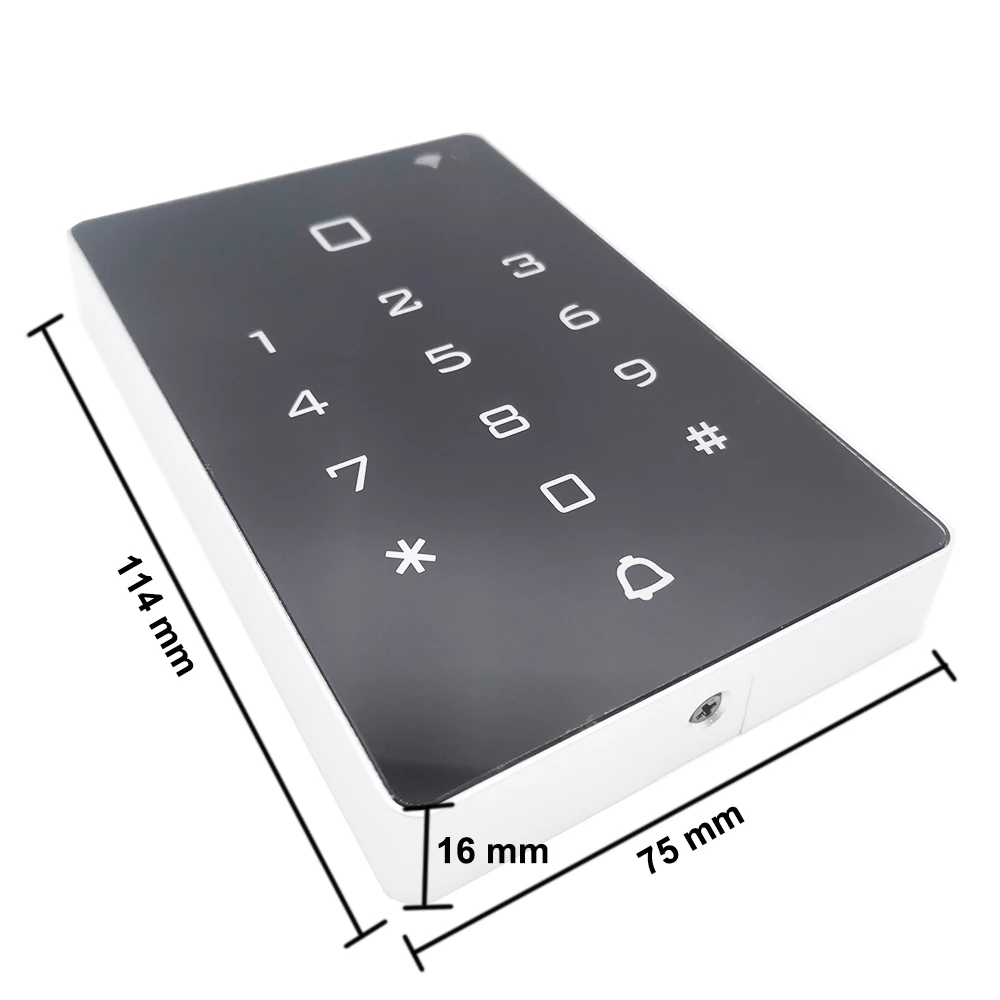

Device Size
114x75x16 mm (Approximate size)
Outdoor Waterproof
IP68 Waterproof

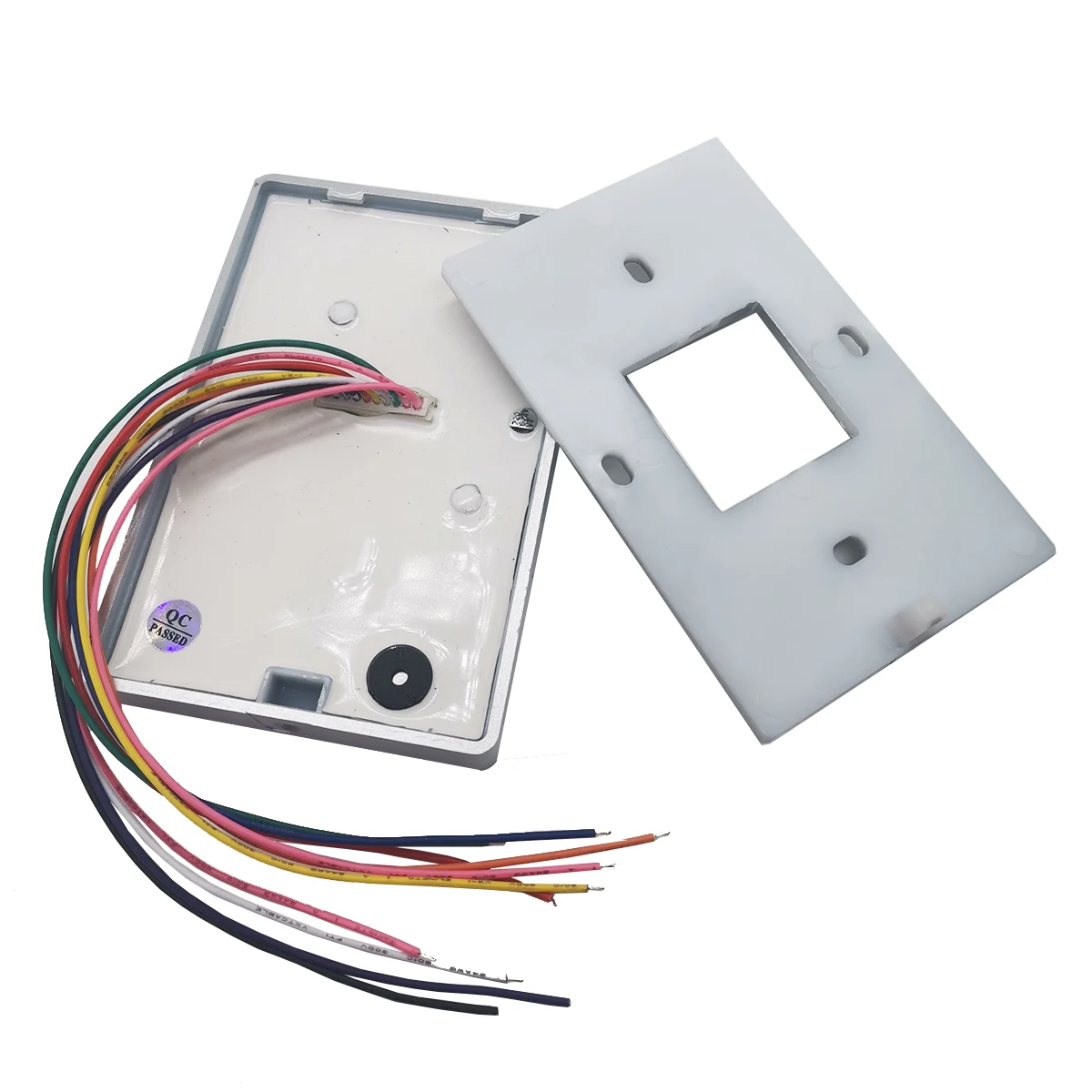

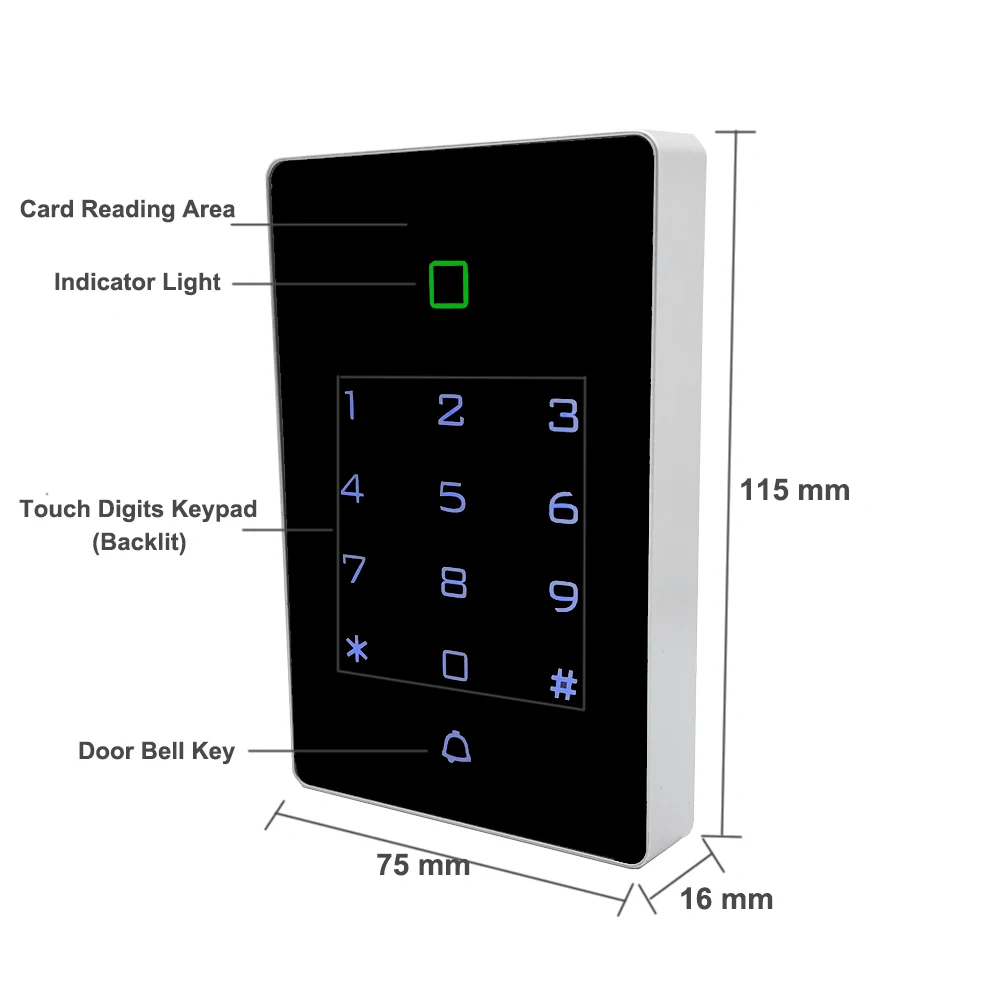

Device Details

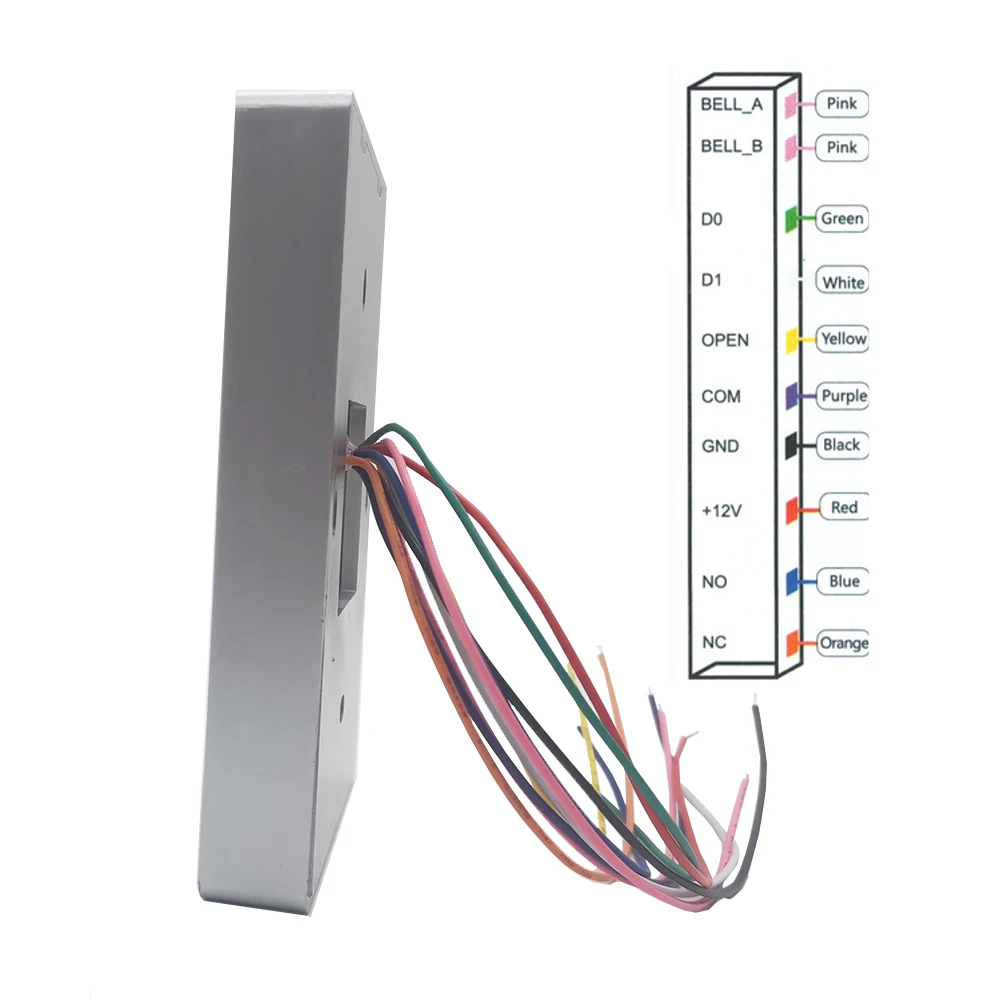

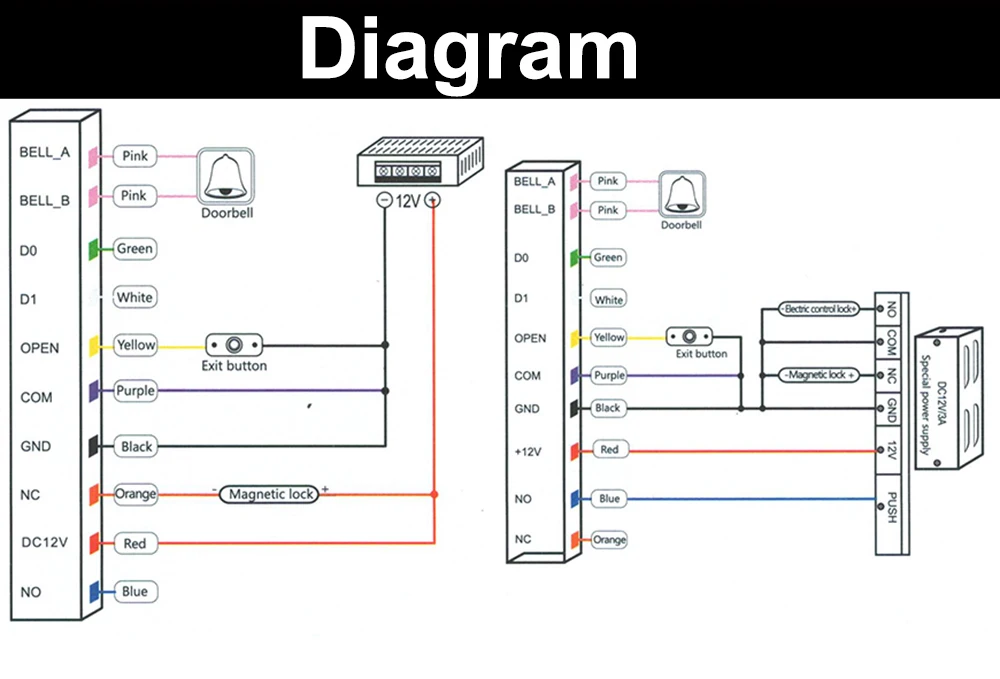

Device Diagram
This link is only Controller, you need to extra parts to finish a full access control system.(Power Supply, Electric Lock, Exit Button etc.)
There are two diagram, you can choose one which is good for you.

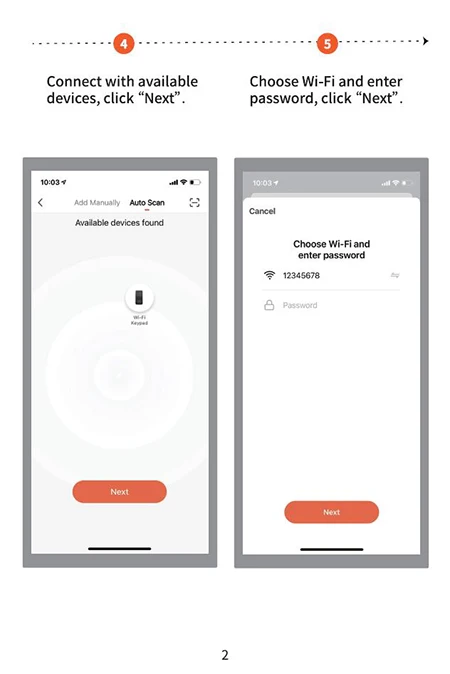

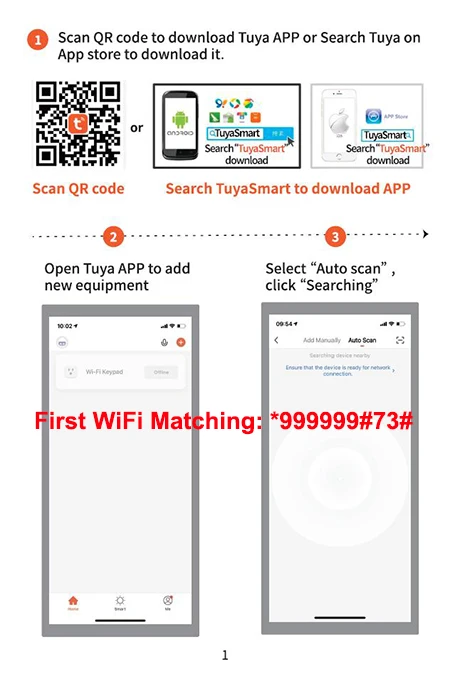

How to Connect with Tuya APP

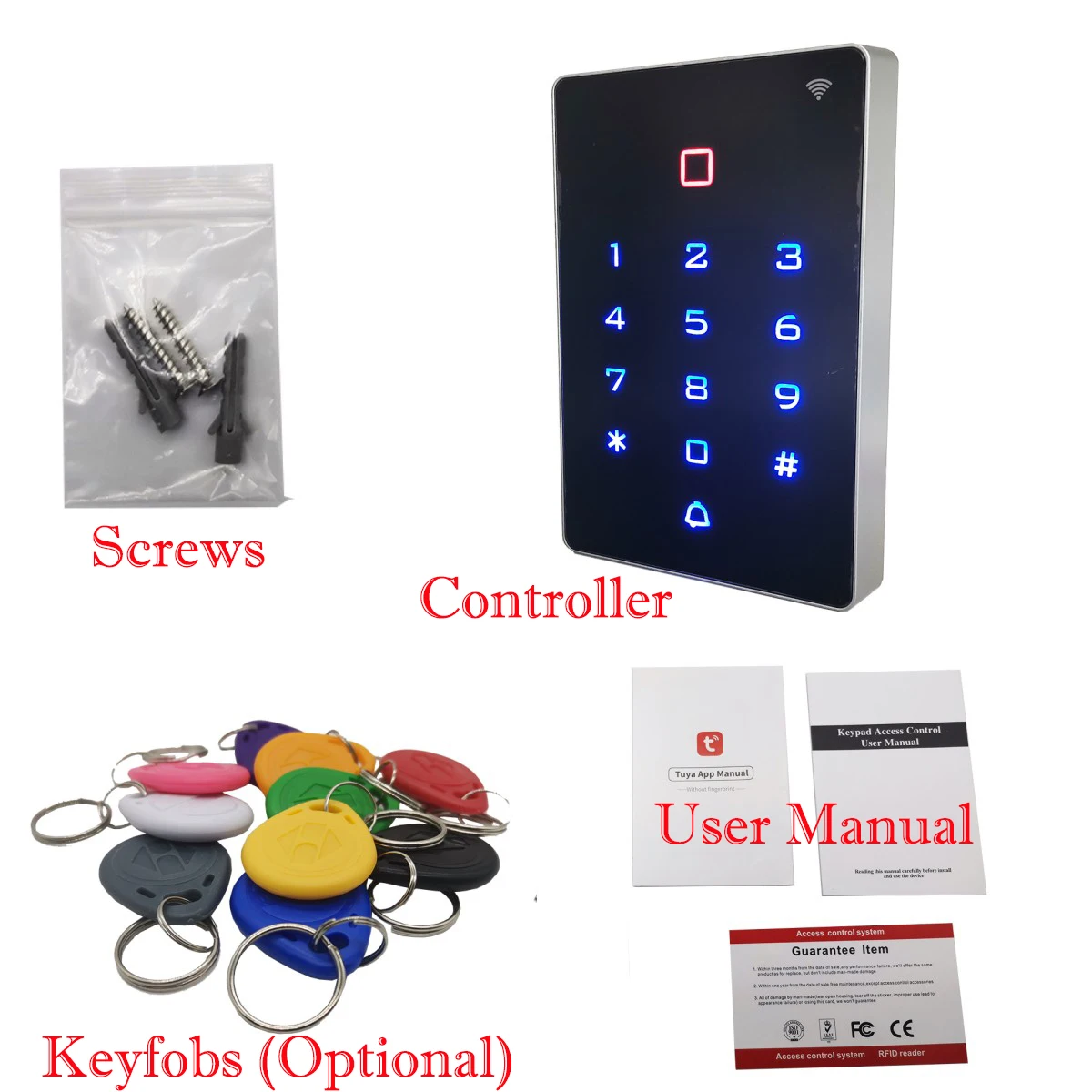

What is In box
1 PC T12-II Device;
1 PC Screws bag
2 PCS User Manual
10 PCS User keyfobs （Optional）
Please kindly note: it is only controller device, you may need to buy extra power supply, Exit Button, Electric lock, Wired Door Bell for full system.
